Compact hay rack for private as well as professional use for round bales up to approx. 1.60 metres in diameter.
This hay rack is ready for use immediately after assembly. Roof etc. are available separately in our shop.

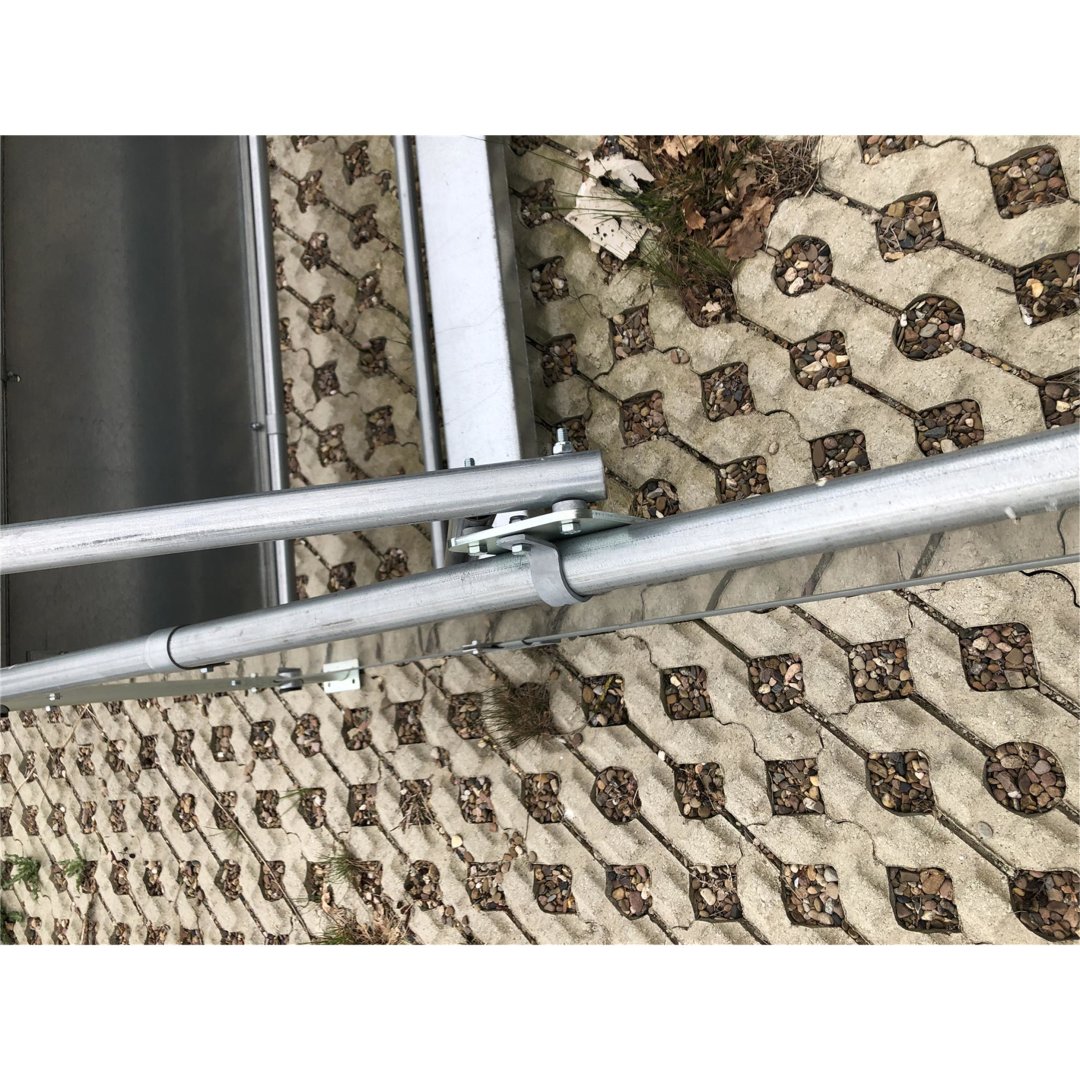

The highlight of this rake is the split pivoting frame, which can be covered with nets with # 30, # 45 or also # 60 mm mesh size. The frame as well as the nets can be purchased optionally here in the shop.
The frame is designed in such a way that both halves can be swivelled by 180 degrees to create enough space for filling the trough with a round bale up to approx. 1.60 metres in diameter.
As the frame is on the inside, both halves drop down to the ground as the amount of hay decreases.
No additional fixing or locking is necessary, simple and fast.
Hay rack ( basic frame) without Roof:
•Länge : 2068 mm
•Breite : 1870 mm
•Höhe : 900 mm
•Material: Rundrohr verzinkt/Zinkblech 2 mm
•Boden: Wellblechplatten
•Ausführung: zerlegt
Optionally available:
-Length : 2068 mm
-Width : 1870 mm
-Height : 900 mm
-Material : round tube galvanised/zinc sheet 2 mm
-Floor: Corrugated sheet metal
-Construction: disassembled
Optionally available:
Roofing:
-Details incl. Roof:
-Length : 2402 mm
-Width : 2351 mm
-Height : 2560 mm
-Material : Galvanised round tube - Galvanised zinc plate
-roof : double web panels
-Construction: disassembled
Folding frame 2 pcs.
-Material: galvanised round tube 1 inch
-Size total: approx.1750 x 1940 mm
Feeding net suitable for snap frames made of knotless polypropylene.
-Ø 5 mm yarn thickness # 30 mm mesh size
-Ø 5 mm yarn thickness # 45 mm mesh size
-Ø 5 mm twine thickness # 60 mm mesh size
Note: The rake is patented incl. the folding net frame and the corresponding nets!
