A jungle bridge as an eye-catcher, both for public communal areas such as on playgrounds and sports fields, in kindergartens or also on school grounds.
The thick running rope is made of weather-resistant square-braided polypropylene rope with Ø 90 mm diameter in natural colour / beige, with Ø 12 galvanised steel wire in the middle for a solid assembly.
The rope ends on the left and right are pressed with solid galvanised ring nuts M12 or optionally with ring bolts M12 x 220 mm for easy mounting on square and round timber. Other types of fastening are available on request.
Railing made of Ø 16 mm Hercules rope with a mesh size of 250 x 275 mm. The railing height is approx. 1.10 metres, depending on the inclination of the sides, thus higher than required by DIN.
In addition, you can purchase a further guardrail net made of PP with Ø 5 mm yarn thickness and # 45 mm mesh size in various colours. This gives you protection against climbing through and additional safety even with a higher installation.
The lengths to be selected are always the "clear width", i.e. you do not have to take into account any material thickness from the post, sag or similar, you just give us the measurement between the attachment points, we do the rest.
You are free to choose the length here. Please note, however, that for longer bridges, centre supports may have to be taken into account.
The production takes place according to the valid DIN EN 1176 (playground standard).
Railing net:
- made of Ø 16 mm Hercules rope ( colour can be selected).
- crossing points with black 2-piece plastic ball knots
- mesh size approx.250 x 275 mm
Running rope:

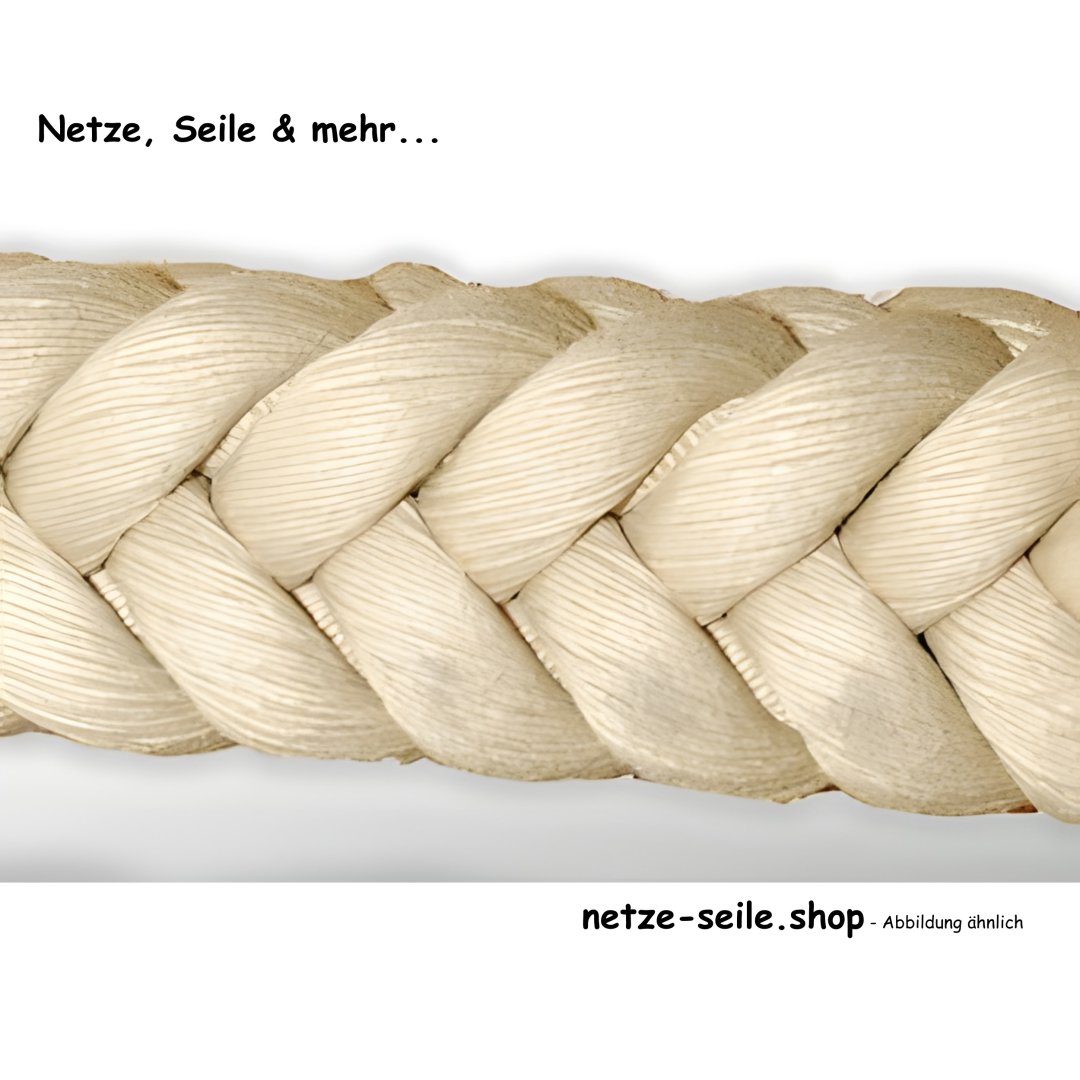

- Square braided polypropylene rope with Ø 90 mm diameter.
- inside Ø 12 mm galvanised steel cable
- colour natural / beige
Fastening / crimping

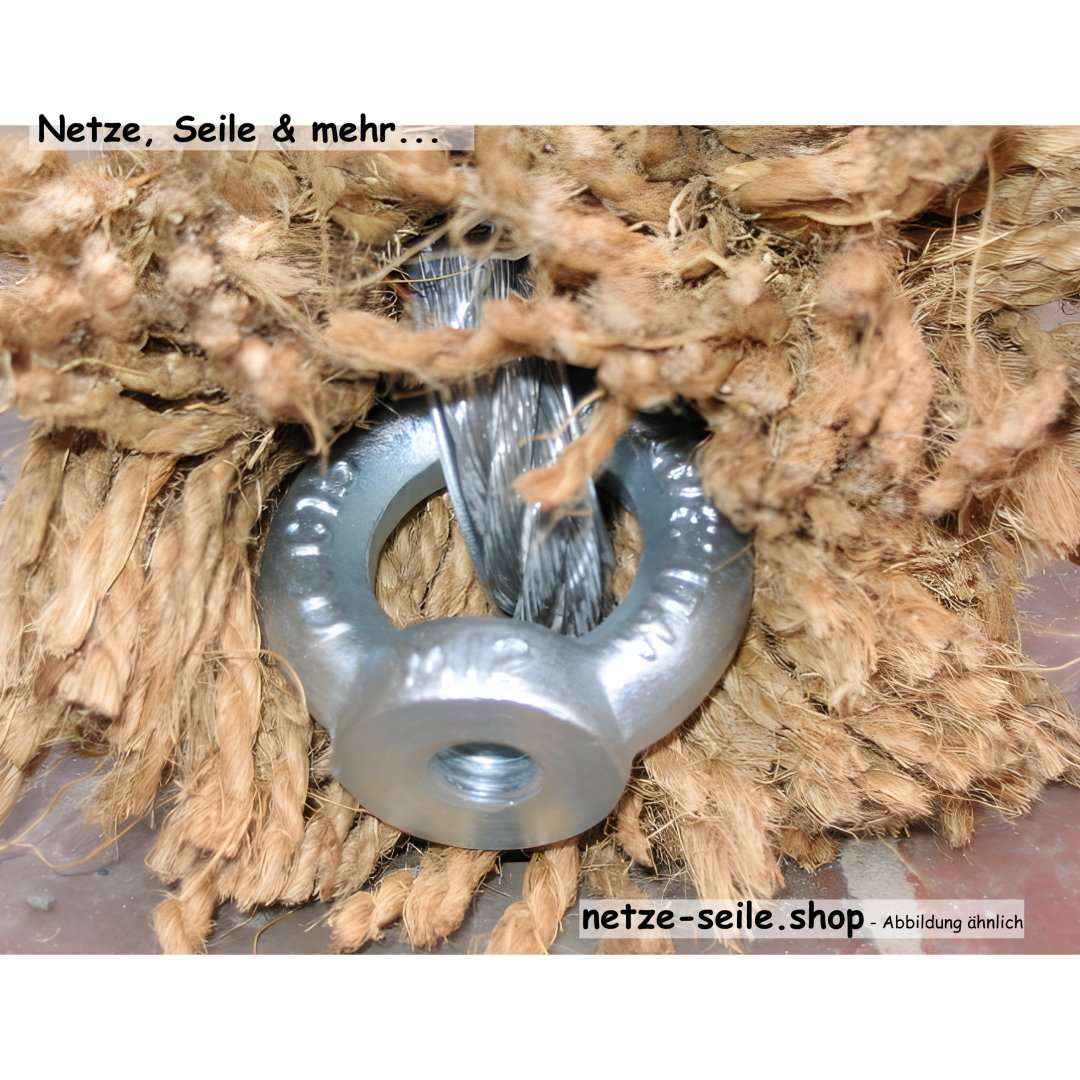

- ring nut galvanised M12 - optional
- eye bolts galvanised M12 x 220 mm
- other fastenings possible on request
Optional
- PP safety net Ø 5 mm yarn; # 45 mm mesh size?The safety net is fastened to the guard-rail net by means of 5 mm PP braided cord.
Note: The price of the fastening options ring nut or ring bolt also includes the connection of the running rope with the shrink hose.
